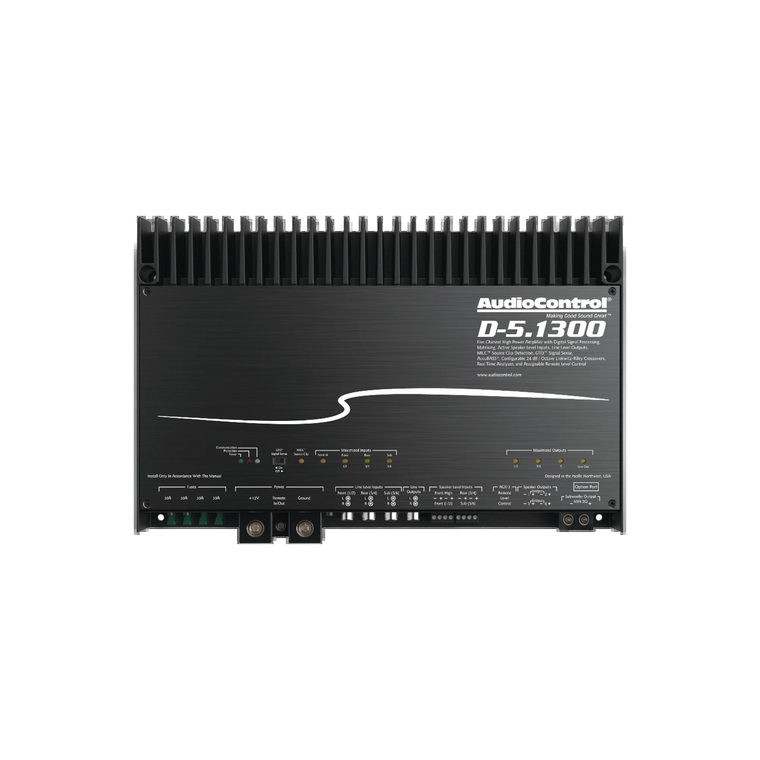

5 Ch Amp W/matrix DSP & SLI-C
FEATURES
Built-in DSP
Configurable as 5 or 3 channel amplifier
4 x 200 watts + 1 x 500 watts @ 2 ohms
4 x 100 watts + 1 x 300 watts @ 4 ohms
400 watts @ 4 ohms bridged
AccuBASS® Processing
MILCTM Maximum Input Level Control (Patent Pending)
GTOTM Signal Sense
Independent Linkwitz-Riley Alignment crossovers
Summable active speaker-level inputs (8 channels) for OEM integration
6 preamp inputs
PFM Subsonic Filter
Solid One-Piece Aluminum Chassis
Input and Output RTA for precise and informed tuning
Input and Output Delay
12 and 24 dB/octave Linkwitz-Riley crossovers
30 band equalizer with auto EQ
Optional ACR-3 remote for preset recall and level control
Optional AC-BT24 Bluetooth Streamer/Programmer
DM Smart DSP app available in downloads for Mac/PC
SPECIFICATIONS
INPUTS
Preamp Inputs: 6 balanced
Preamp Input Voltage Range: 500 mV – 6 Vrms
Speaker Level Inputs: 8
Speaker Level Input Voltage Range: 3 V – 40 Vrms
OUTPUTS
Rated Continuous (RMS) Power at 14.4V:
