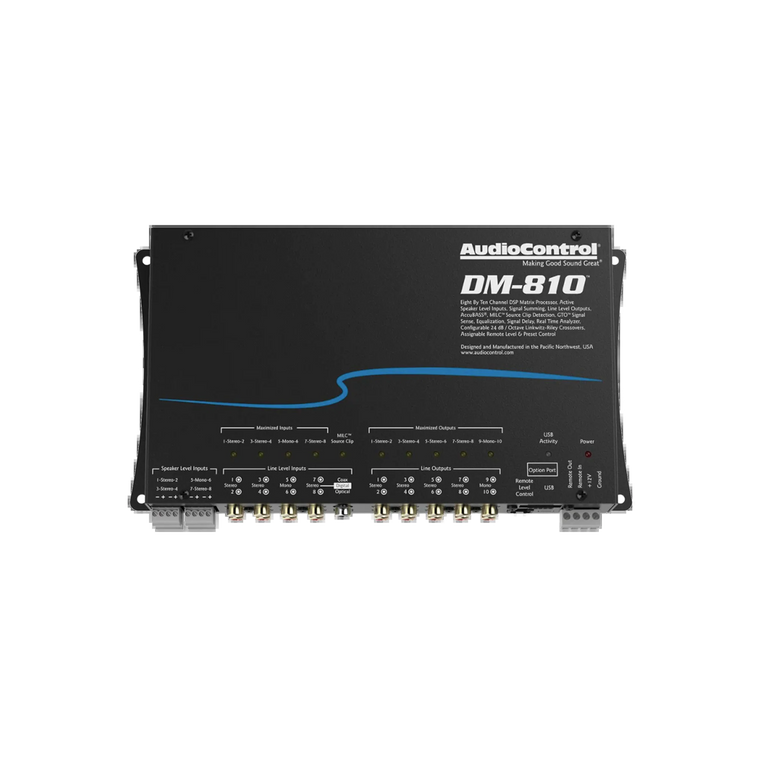

Matrix DSP 8in/10 out
FEATURES
Input and Output RTA for precise and informed tuning
GTOTM Signal Sensing
MILCTM Clip Detection
AccuBASS®
Signal Summing
Signal Delay
12 and 24 dB/octave crossovers
30 band equalizer
Optional ACR-3 remote for preset recall and level control
Optional AC-BT24 Bluetooth Streamer/Programmer
DM Smart DSP app available in downloads for Mac/PC or
SPECIFICATIONS
INPUTS
Preamp Input Channels: 8
Digital Inputs: 1 x Toslink and Coax
Input Impedance Preamp / Speaker-level: 20 kO / 7 kO
OUTPUTS
Preamp Outputs Channels: 10
Maximum Output Level: 10 Vrms
Output Impedance: 150 O
