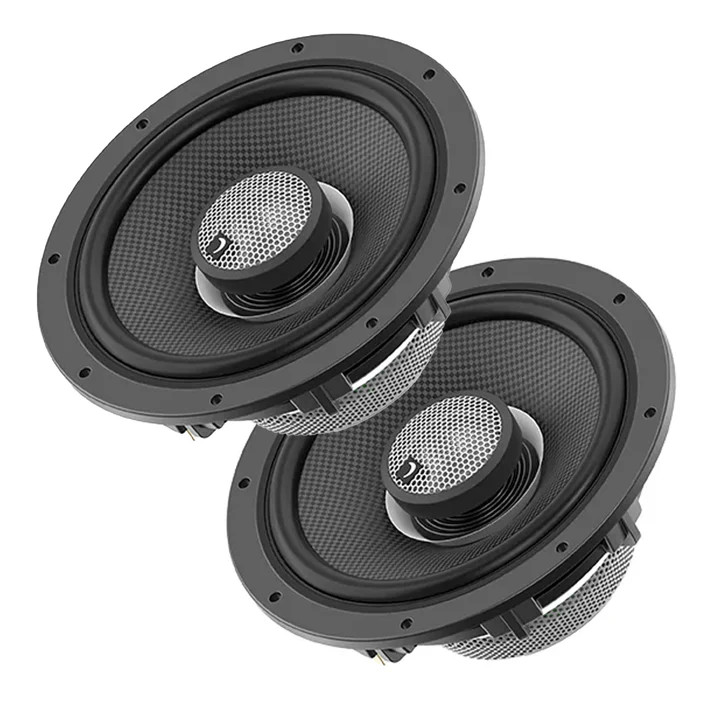

HXM65F2BK

6.5" 2way 2ohm Flsh Mnt 450W
SPEAKER SIZE - 6.5"
SPEAKER TYPE - HORN LOADED CO AXIAL
OHMS (PER COIL) - 2
NUMBER OF VOICE COILS - SINGLE
CONE MATERIAL - CARBON FIBER
DIAPHRAGM MATERIAL - TITANIUM
BASKET MATERIAL - FIBREGLASS REINFORCED POLYMER
MAGNET TYPE - NEODYMIUM
SURROUND MATERIAL - RUBBER
WATER RESISTANCE -
VOICE COIL DIAMETER - INCH (MM) - 2"
THIELE/SMALL PARAMETERS
SENSITIVITY (1W/1M): 95
RE (O) [SERIES]: 1.8
QMS: 7.506
QES: 0.369
QTS: 0.352
FS (HZ): 105
VAS (L): 6.172
CMS (MM/N): 0.288
MMS (G): 8.024
SD (M2): 122.718
BL (T*M): 5.068
XMAX (MM): 2.75
POWER HANDLING RMS: 150
POWER HANDLING MAX: 450
MOUNTING DEPTH: IN.(MM):2.52" (64MM)
CUT OUT DIAMETER IN.(MM):5.44" (138.06MM)
OVER ALL DIAMETER IN.(MM):6.61" (167.79MM)
OVER ALL HEIGHT IN.(MM):3.03" (77.02MM)
