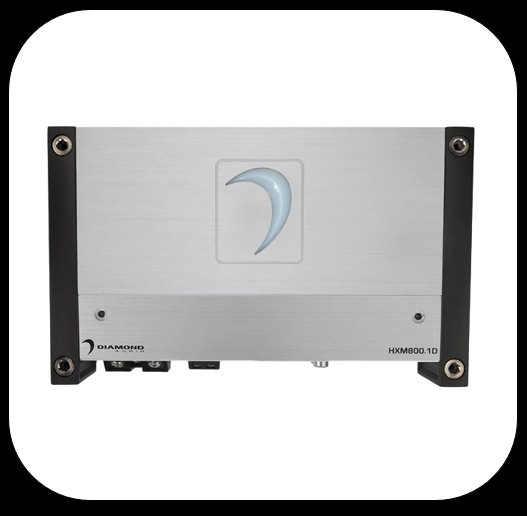

800X1 @ 1ohms, Class D-D
POWER RATING
RMS Power (1O): 800W
RMS Power (2O): 550W
RMS Power (4O): 350W
POWER SUPPLY
Power Supply: Full PWM
Power Supply Threshold: 10.0V-17.0V (DC)
Idle Current: (0.7A)
DISTORTION
THD 4 (1KHz @4O): 0.05%
S/N Ratio (A weighted @1W): -77.2dBA
S/N Ratio (A weighted @FP): -98.9dBA
INPUT SENSITIVITY
Low Input Level: 0.2mV-10.0V
High Input Level: Up to 25W RMS
INPUT IMPEDANCE
Low Input Level: 22 KO
High Input Level: 22 KO
OUTPUT STAGE
Output Impedance: 0.047O
Damping Factor (50Hz @ 4?): >250
Bandwidth (-3dB): 10Hz-350Hz
CROSSOVER (-12/Oct)
Variable High-Pass: N/A
Variable Low-Pass: 30Hz-300Hz
Variable Sub-Sonic: 10Hz-55Hz
FUSE RATINGS
ATC: 45A
DIMENSIONS
L x W x H: 8.56”x5.27”x1.75” (217.6mm x 133.9mm x 44.5mm)
