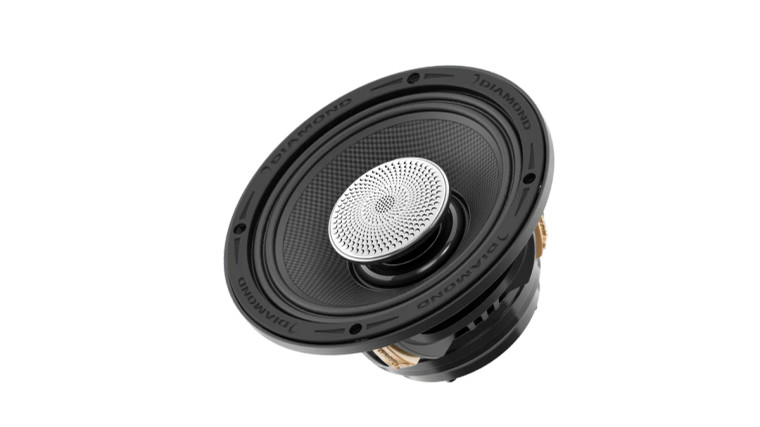

6.5" NeoHorn WtrProf 400W 2ohm
Specifications
SPEAKER SIZE - 6.5"
SPEAKER TYPE - HORN LOADED CO AXIAL
BI-AMPABLE YES
OHMS (PER COIL) - 2O
NUMBER OF VOICE COILS - DUAL
FIELD SERVICABLE VOICE COIL - YES
CONE MATERIAL - CARBON FIBER
DIAPHRAGM MATERIAL - (PEN) POLYETHYLENE NAPHTHALATE
BASKET MATERIAL - CAST ALUMINIUM
MAGNET TYPE - NEODYMIUM
SURROUND MATERIAL - RUBBER
WATER RESISTANCE -
VOICE COIL DIAMETER - INCH (MM) - 2"
THIELE/SMALL PARAMETERS
SENSITIVITY (1W/1M): 93
RE (O) [SERIES]: 3.2
QMS: 10.357
QES: 0.67
QTS: 0.629
FS (HZ): 151
VAS (L): 2.756
CMS (MM/N): 0.094
MMS (G): 11.728
SD (M2): 143.14
BL (T*M): 7.289
XMAX (MM): 1.2
POWER HANDLING RMS: 200
POWER HANDLING MAX: 400
MOUNTING DEPTH: IN.(MM):3.43"" (87.13MM)
CUT OUT DIAMETER IN.(MM):5.63"" (143MM)
OVER ALL DIAMETER IN.(MM):6.65"" (169MM)
OVER ALL HEIGHT IN.(MM):3.79"" (96.33MM)
