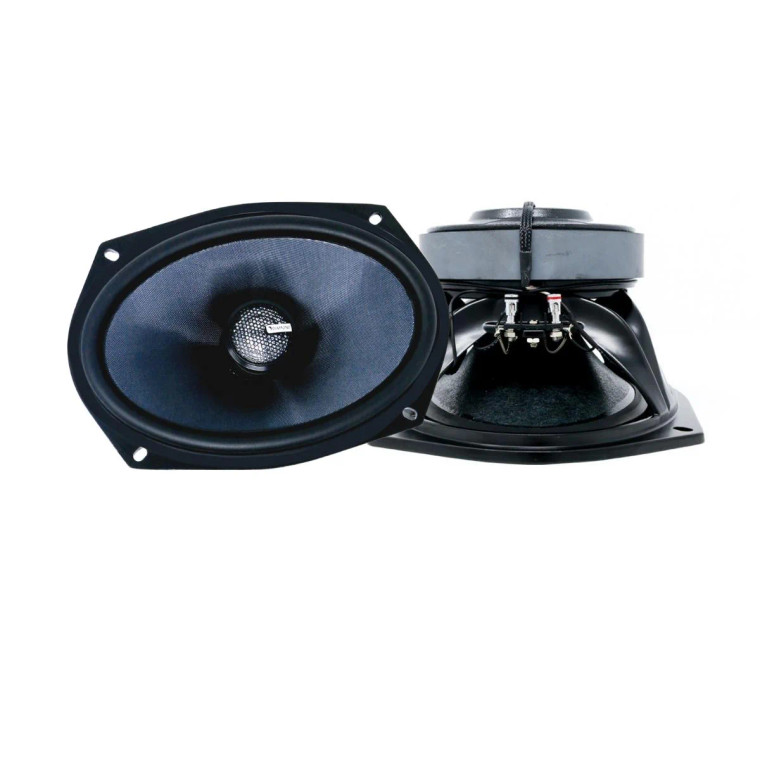

6x9 CoaxSub 2 ohm
Specifications
Parameter (Unit)
Power Handling Watts (RMS/Peak): 130W/520W
Nominal Impedance (O): 2O
Frequency Response (Hz): 45Hz-23kHz
Voice Coil: 1.66" (42.2mm)
Fs - Free Air Resonance (Hz): 46Hz
Qts: 0.51
Vas ft³ (Liter): 0.794" (22.5L)
Sensitivity (1W/1M): 87.6db
Sensitivity( 2.83V/1M): 94.6db
Xmax (mm): 0.315" (8mm)
Mounting Depth: 3.818” (97mm)
Mounting Diameter: 5.98”x8.85” (152mmX225mm)
FEATURES
Manufactured to IPx65 Marine Grade Compliant Specifications
1" High Output Titanium Dome Tweeter
UV-Treated Thermal Molded Waterproof Kevlar Cone with Rubber Surround
12dB Bessel Crossover Network
Super High Energy Ferrite Motor System With Milled Aluminum Top Plate
T-Yoke Back Plate Drilled For 35% More Cooling, Increased Power Handling
High-Temperature Cast Aluminum Basket
Coax-sub
