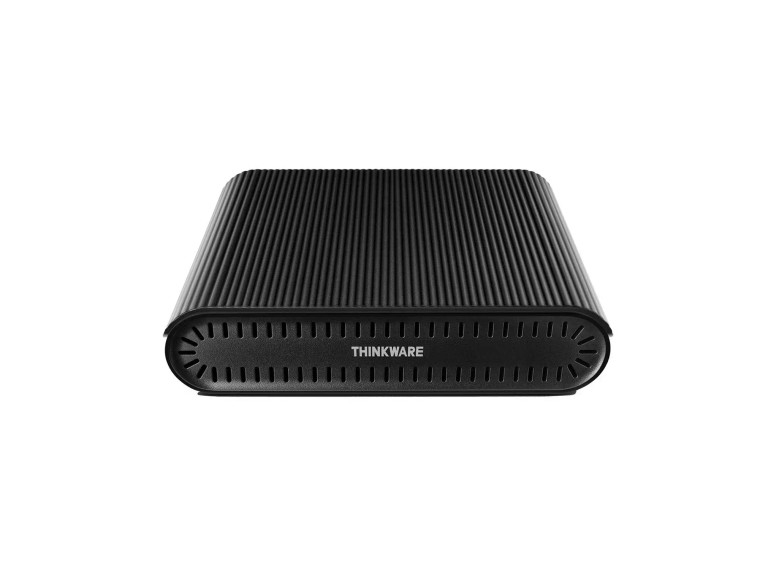

iVolt Mini Battery pack
Specifications
Input Power: 12.0V – 15.5V / 10A MAX
Output Voltage / Current: 12.0V – 14.6V / 2.0A MAX
Charging Voltage / Current: 14.6V / 7A (Hardwire)
Charging Time Approx.: 45 minutes (by Hardwire to Fuse Box)
Usage Time (Approx.): 1ch - 20 hours / 2ch - 16 hours
Battery: LiFePo4 (Lithium iron phosphate)
Battery Capacity: 12.8V 4,500mAh 57.6Wh
Dimensions (WxDxH): 165.4 x 131.2 x 36.8 mm (6.51 x 5.17 x 1.45 in)
Weight: 0.95 kg (2.1 lb)
Operating Temperature Charging: 0°~45°C (32°~113°F)
Discharging: -10°~60°C (14°~140°F)
(Cell skin temperature cannot exceed 80°C)
Storage Temperature : -10°C ~ 60°C (14°~140°F)
Storage Humidity Range: 65% ±20%RH
(Recommended to store 23 ±5°C for long term)
TWA-EXBH
