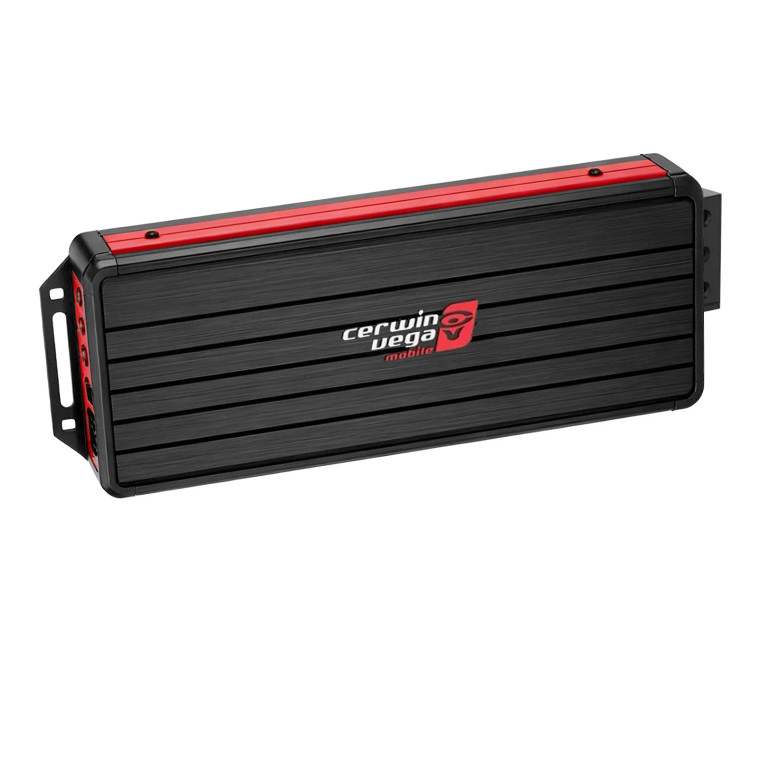

100wX6@ 4Ohms All Weather Amp
Specifications
POWER RATING
FREQUENCY RESPONSE (HZ): 40HZ - 400HZ
RMS POWER PER CHANNEL 4O 100W X 6
RMS POWER PER CHANNEL 2O 150W X 6
RMS POWER PER 2 CHANNELS BRIDGED 4O 300W X 3
POWER SUPPLY
Power Supply: Full PWM
Power Supply Threshold: 10.0V-17.0V (DC)
Idle Current: (0.7A)
DISTORTION
THD 4 (1KHz @4O): 0.05%
S/N Ratio (A weighted @1W): -85 dBA
S/N Ratio (A weighted @FP): -101.1 dBA
INPUT SENSITIVITY
Low Input Level: 200mV-10.0V
High Input Level: 200mV-10.0V
INPUT IMPEDANCE
Low Input Level: 20 KO
High Input Level: 20 KO
OUTPUT STAGE
Output Impedance: 0.018O
Damping Factor (50Hz @ 4?): >250
Bandwidth (-3dB): 10Hz-35KHz
CROSSOVER (-12/-24 dB/Oct)
Variable High-Pass: Flat or Fixed 70Hz
Variable Low-Pass: 40Hz-400Hz
Variable Sub-Sonic:
FUSE RATINGS
ATC: 60A
DIMENSIONS
L x W x H: 11.24”x 4.02”x 1.4” (285.6mm x 102mm x 36mm)
FEATURES
Full Range Class D IR Chipset
DirectFET Power Mosfet Output Stage
