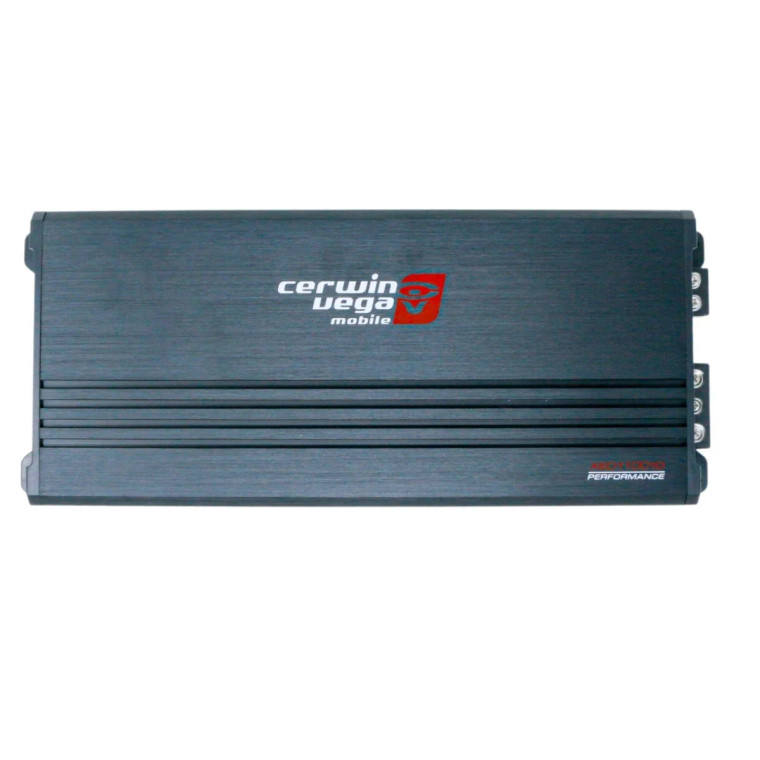

XED 1500wx1@1ohm RMS Amp
FREQUENCY RESPONSE (HZ): 35HZ - 350HZ
RMS POWER PER CHANNEL 4O 650W X 1
RMS POWER PER CHANNEL 2O 1100W X 1
POWER SUPPLY
Power Supply: Full PWM
Power Supply Threshold: 10.0V-16.0V (DC)
Idle Current: (0.7A)
DISTORTION
THD 4 (100Hz @4O): <0.1%
S/N Ratio (A weighted @1W): -85dBA
S/N Ratio (A weighted @FP): -101.1dBA
INPUT SENSITIVITY
Low Input Level: 250mV-6V
High Input Level: 1.1V~>20.0V
INPUT IMPEDANCE
Low Input Level: 20KO
High Input Level: 100O
OUTPUT STAGE
Output Impedance: 2O
Damping Factor (50Hz @ 4?): >70
Bandwidth (-3dB): 10Hz-250Hz
CROSSOVER (-12dB/Oct)
Variable High-Pass:
Variable Low-Pass: 35Hz-250Hz
Variable Sub-Sonic: 10Hz-50Hz
FUSE RATINGS
ATC: 35A x 3 (Inside)
DIMENSIONS
L x W x H: 11”x 4.7”x 1.8” (280mm x 120mm x 46.5mm)
FEATURES
Bass Boost: 0dB-12dB
LED Power/Protect Light Indicator
Bass Control Included
