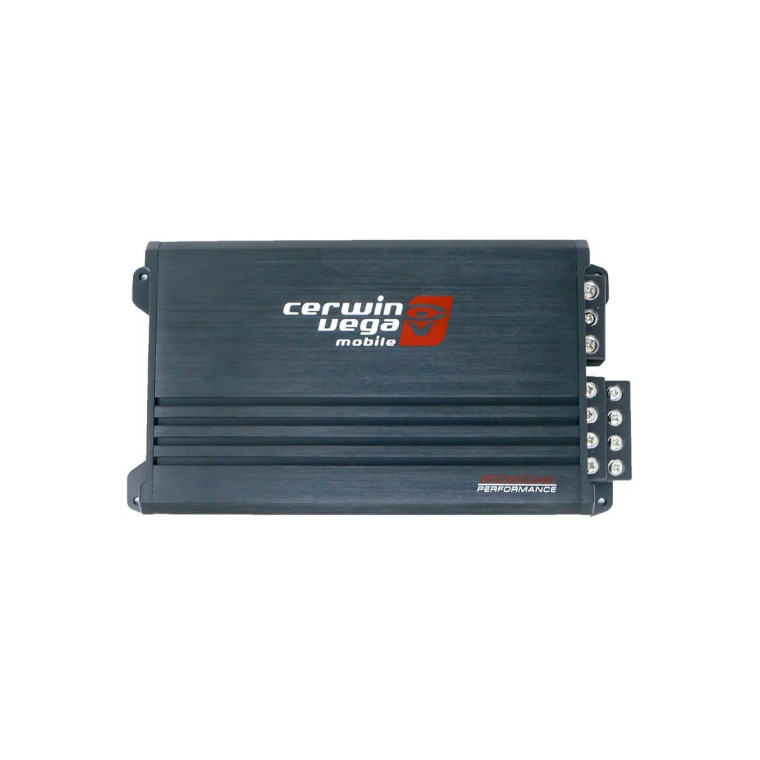

XED 80wx4@4ohm RMS Amp
FREQUENCY RESPONSE (HZ): 35HZ - 350HZ
RMS POWER PER CHANNEL 4O 80W X 4
RMS POWER PER CHANNEL 2O 120W X 4
Power Supply: Full WPM
Power Supply Threshold: 10.0V-16.0V (DC)
Idle Current: (0.7A)
Distortion
THD 4 (1KHZ @4O): 0.1%
S/N RATIO (A WEIGHTED @1W): -85dBA
S/N RATIO (A WEIGHTED @FP): -101.1dBA
Input Sensitivity
Low Level Input: 250mV-10.0V
High Level Input: 1.3V~>20.0V
Input Impedance
Low Level Input: 10KO
High Level Input: 100KO
Output Stage
Output Impedance: 2O
Damping Factor (50Hz@4O): >70
Bandwidth (-3db): 10Hz-3KHz
Crossover (1-12dB/Oct)
Variable High-Pass: 35Hz-250Hz
Variable low-Pass: 35Hz-250Hz
Fuse Rating
2 x 25A (Inside)
Dimensions
Length x Width x Height: 7.1”x4.7”x1.8” (180mm x 120mm x 46.5 mm)
FEATURES
LED Power/Protect Light Indicator
Selectable X-Over: High Pass/Flat/Low Pass
